The right pane contains:ĭrive tab that contains indicators for joystick and drive motor values (hooked up by default when used with LabVIEW robot code), a gyro indicator, an Autonomous selection text box, a connection indicator and some controls and indicators for the cameraīasic tab that contains some default controls and indicatorsĬamera tab that contains a secondary camera viewer, similar to the viewer in the left paneĬustom tab for customizing the dashboard using LabVIEW The left pane is for displaying a camera image. The Dashboard is broken into two main sections.
Troubleshoot frc driver station errors code#
Using the LabVIEW Dashboard with C++/Java Code. Follow general network troubleshooting outlined in: Imaging the roboRIO and Common Troubleshooting Techniques. If LabVIEW still cannot connect to it, please visit: LabVIEW for FRC shows Connection Failed to my roboRIO. Troubleshoot frc driver station errors update#
If you see problems upgrading the firmware, please refer to: 2019 FRC Firmware Update Failing.
If the Imaging Tool cannot detect the roboRIO after ie being successfully connected to the DS, I recommend you check that the Imaging Tool is run as admin and without a firewall. Reimage your roboRIO with the new firmware and format it. Reboot your computer and check if the behavior is persistent when using a different computer. The roboRIO will now restart in SafeMode which is indicated by the STATUS light flashing three times in a row. Put your roboRIO in SafeMode: hold down the reset button until the the STATUS light goes solid and then release the reset button. If you are connecting through the radio, ensure that there is just one computer connected to the radio. Ensure there is not a driver station already connected to the robot. Try running the driver station as administrator (right click on the program and select Run as Administrator). Troubleshoot frc driver station errors windows#

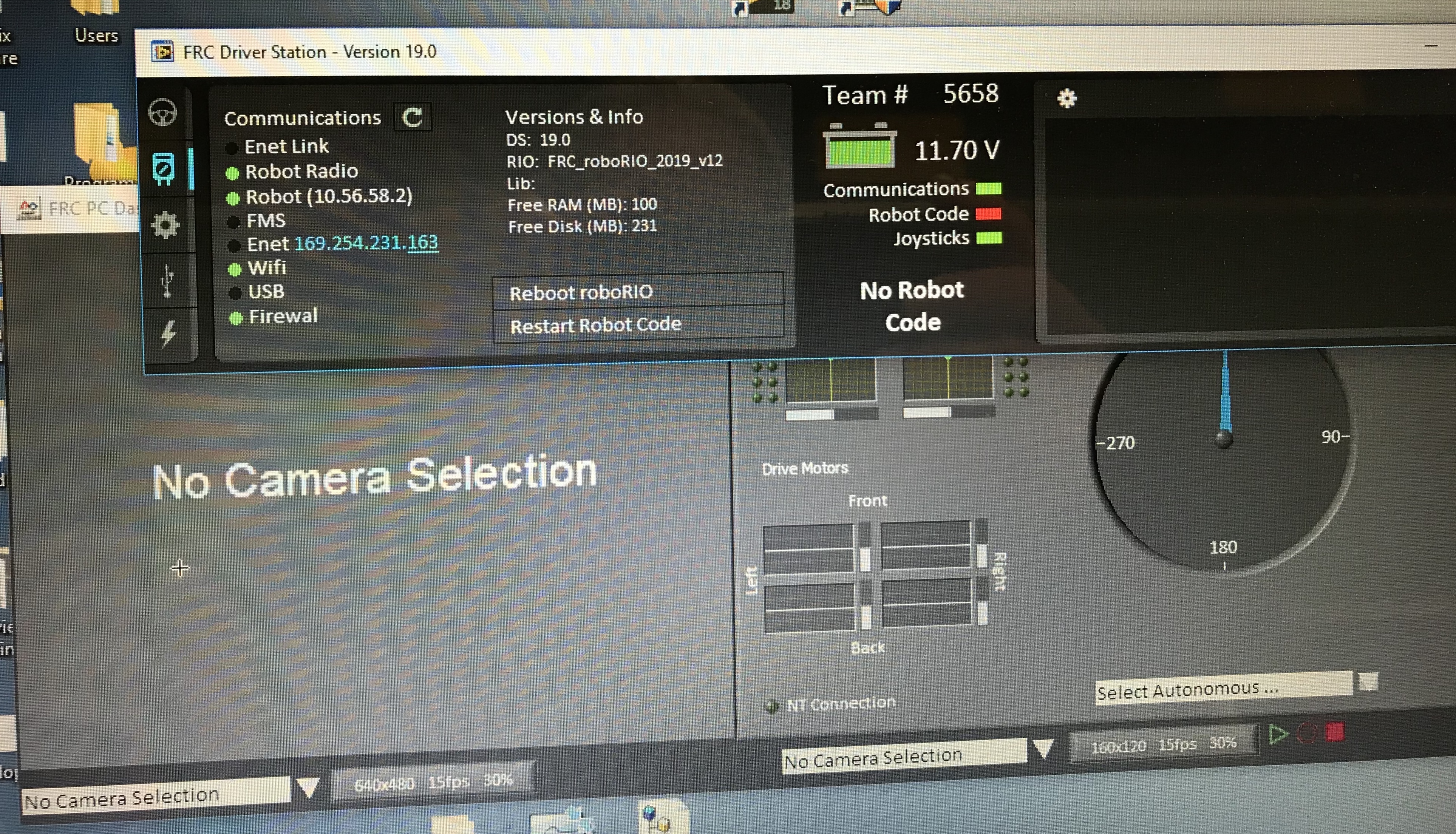

Make sure your Windows Firewall is off, and there is no antivirus blocking the connection between the Driver Station and the roboRIO. Ensure your Team Number is set on the gear tab of the driver station. You can use the Diagnostics tab in the left of the DS to see the connection details. Check that the Driver Station has connectivity. If you cannot ping the roboRIO, it is possible the USB cable/port is not correct, or that your computer is not associating the correct driver to the port. Check you can ping the roboRIO using this connection (command line: ping 172.22.11.2). This includes other USB ports, Ethernet, and WiFi. Make sure there are no other roboRIOs connected to the computer. Connect the roboRIO to the computer using a USB cable.
If the STATUS LED is continuously blinking, please contact NI. If the STATUS LED is blinking three times, it is in safe modeĬ.
Troubleshoot frc driver station errors software#
If the STATUS LED is blinking twice, there is no software loaded into your roboRIO, you need to reimage itī.
Make sure the roboRIO is booting correctly: the STATUS LED should turn off after booting (solid orange for one minute).Ī. Follow the next document if a FRC roboRIO Light is Red. Make sure your roboRIO is getting the correct power: the POWER LED should be green. Make sure you have the latest Update Suite installed.
